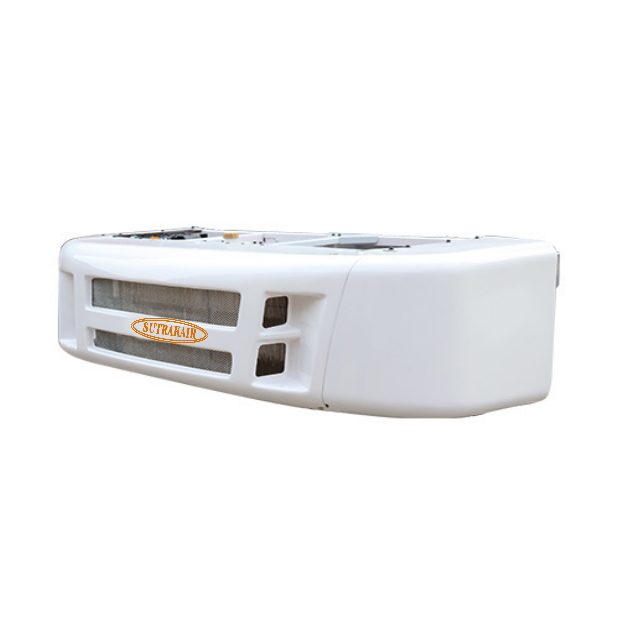

Diesel Dirve Refrigerations Units – TKD1280

Model No: TKD1280

Engine Cooling Capacity:

• 0℃ / +38℃ : 8,600KW / 29,343Btu

• -18℃ / +38℃ : 4,400KW / 15,013Btu

Standby Cooling Capacity:

• 0℃ / +38℃ : 9,800KW / 33,438Btu

• -18℃ / +38℃ : 4,900KW / 16,719Btu

Driven Method: Engine Self Power

Engine Model: Yanmar, 3TNV80

Engine Power (kw): 15.2

Voltage: DC12V

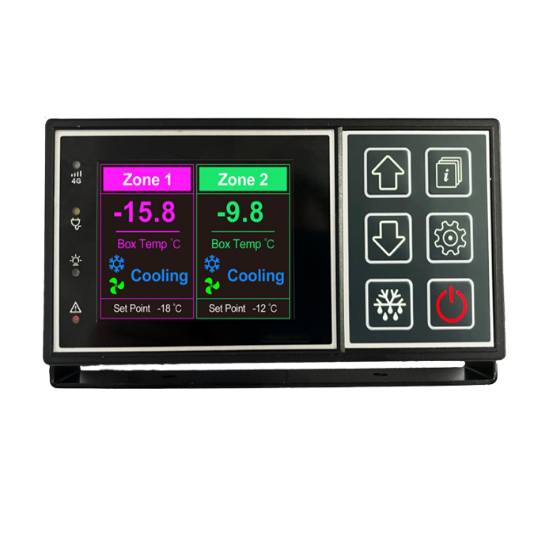

Controller: Electronic digital controller

Compressor: Electric Piston Compressor

Refrigerant: R404a

Evaporator Airflow Volume: 3,200 m³/h

Suitable Box Volume: 50~ 60 m³

Condenser Size (mm): 1890 x 935 x 595

Evaporator Size (mm): 1210 x 635 x 330

Product Weight (kg): 580

Standby:  AC380V / 3 Phase / 60Hz
